Lincoln Nautilus: Handles, Locks, Latches and Entry Systems / Front Door Lock Control Switch. Removal and Installation
Removal
NOTE: LH side shown, RH side similar.
-
Remove the front door trim panel.
Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

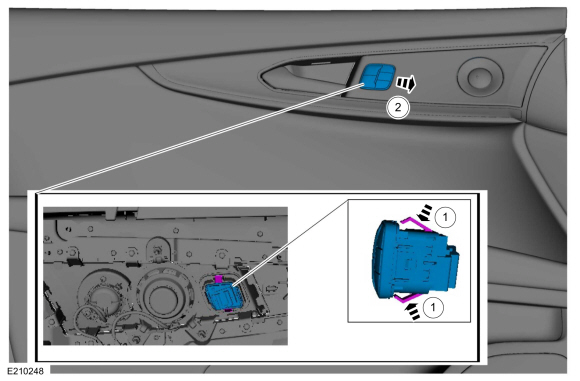

Remove the front door lock control switch.
-
Release the retaining clips.
-
Remove the front door lock control switch.
-
Release the retaining clips.
 |
Installation
- To install, reverse the removal procedure.
Front Door Latch. Removal and Installation
Removal
NOTE:
LH side shown, RH side similar.
Remove the exterior front door handle.
Refer to: Exterior Front Door Handle (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation)...
Fuel Filler Door Latch. Removal and Installation
Removal
Remove the fuel filler door assembly.
Refer to: Fuel Filler Door Assembly (501-03 Body Closures, Removal and Installation).
Release the clips and remove the fuel filler door latch...
