Lincoln Nautilus: Front Seats / Front Seat Power Lumbar Assembly. Removal and Installation

Lincoln Nautilus 2018-2024 Service Manual / Body and Paint / Body and Paint / Front Seats / Front Seat Power Lumbar Assembly. Removal and Installation

Removal

NOTE: Driver seat shown, passenger seat similar.

  1. Remove the front seat.
    Refer to: Front Seat (501-10A Front Seats, Removal and Installation).

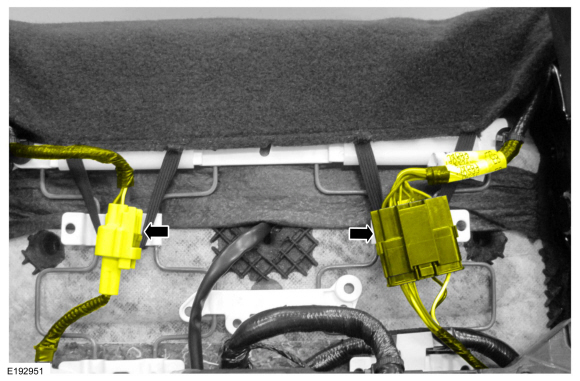

  1. Detach the electrical connector retainers and position the wiring harnesses aside.

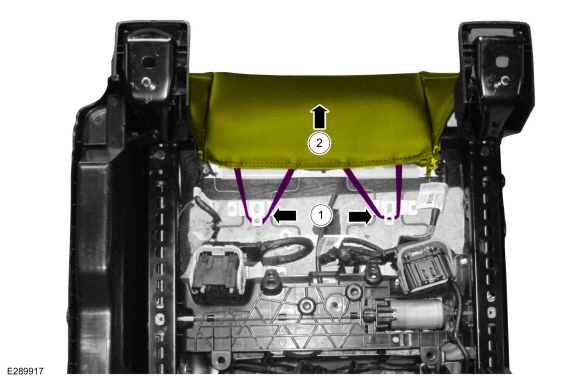

    1. Detach the backrest cover straps.
    1. Position the backrest cover upward.

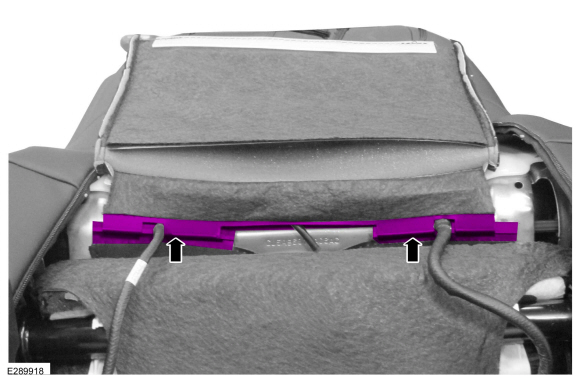

  1. Release the backrest cover lower J-clips.

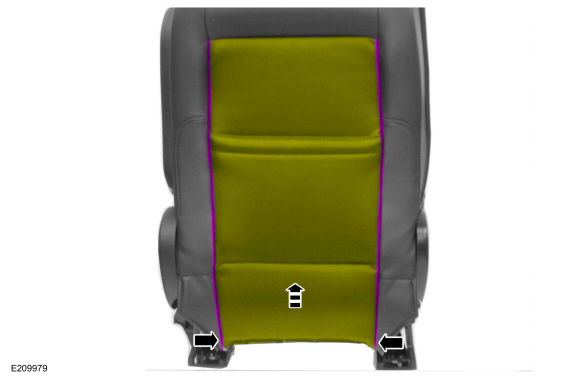

  1. NOTICE: To install, gradually alternate the left and right seat backrest cover zippers to prevent damage to the seat backrest cover.

    Unzip both sides of the front seat backrest cover and position the cover upward.

Heated/ventilated seats

  1. Remove the front seat backrest blower motor.
    Refer to: Front Seat Backrest Blower Motor (501-10A Front Seats, Removal and Installation).

All seats

  1. Disconnect the electrical connector, release the J-hooks, and remove the power lumbar assembly.

Installation

  1. To install, reverse the removal procedure.
