Lincoln Nautilus: Handles, Locks, Latches and Entry Systems / Interior Front Door Handle. Removal and Installation
Removal
NOTE:
LH side shown, RH side similar.
-
Remove the front door trim panel.
Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-
Remove the interior front door handle.
-
If equipped.
Remove the retainers and position aside the ambient lamp.
-

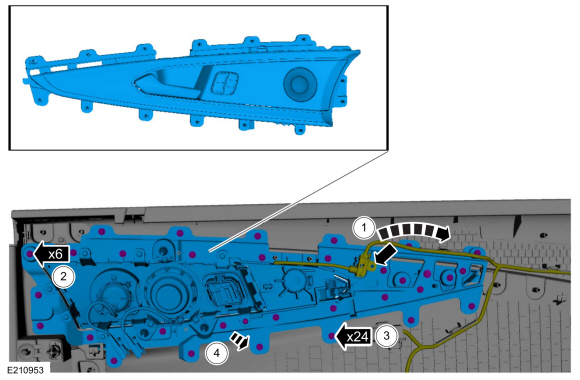

Remove the retainers from the interior front door handle.
-
Remove the retainers from the interior front door handle.
-
Remove the interior front door handle.
-
NOTE:
This step is only necessary when installing a new component.

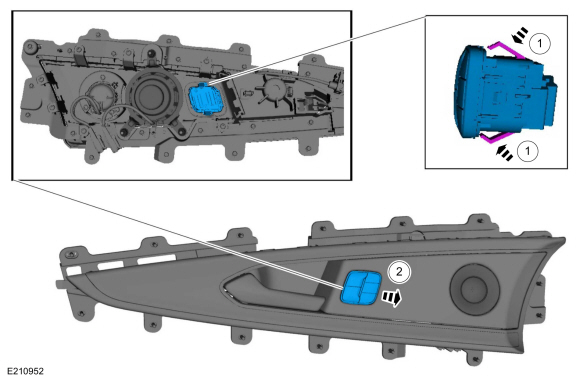

Remove the front door lock control switch.
-
Release the retaining clips.
-
Remove the front door lock control switch.
Installation
-
To install, reverse the removal procedure.
Removal
Remove the hood latch release handle access cover.
NOTE:
Insert a 10mm 1/4 inch drive socket to release the clips...
Removal
NOTE:
LH side shown, RH side similar.
Remove the rear door trim panel.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
Other information:
Removal
Remove the IPC .
Refer to: Instrument Panel Cluster (IPC) (413-01 Instrumentation, Message Center and Warning Chimes, Removal and Installation).
Release the tabs and remove the IPC lens.
Installation
To install, reverse the removal procedure...
