Lincoln Nautilus: Supplemental Restraint System / Passenger Airbag Deactivation (PAD) Indicator. Removal and Installation

Lincoln Nautilus 2018-2025 Service Manual / Body and Paint / Body and Paint / Supplemental Restraint System / Passenger Airbag Deactivation (PAD) Indicator. Removal and Installation

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

  1. NOTE: Interior rear view mirror removed for clarity.

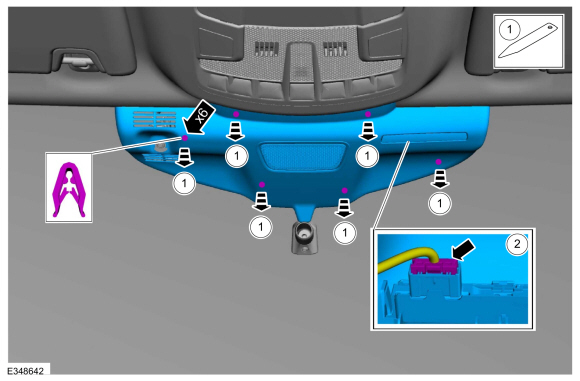

    Remove the IPMA cover.
    1. Release the IPMA cover clips.
      Use the General Equipment: Interior Trim Remover
    1. Disconnect the PAD indicator electrical connector.
  1. Release the tabs and remove the PAD indicator.

Installation

  1. To install, reverse the removal procedure.
