Lincoln Nautilus: Seatbelt Systems / Rear Center Seatbelt Buckle. Removal and Installation

Lincoln Nautilus 2018-2025 Service Manual / Body and Paint / Body and Paint / Seatbelt Systems / Rear Center Seatbelt Buckle. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the rear seat cushion.
    Refer to: Rear Seat Cushion (501-10B Rear Seats, Removal and Installation).

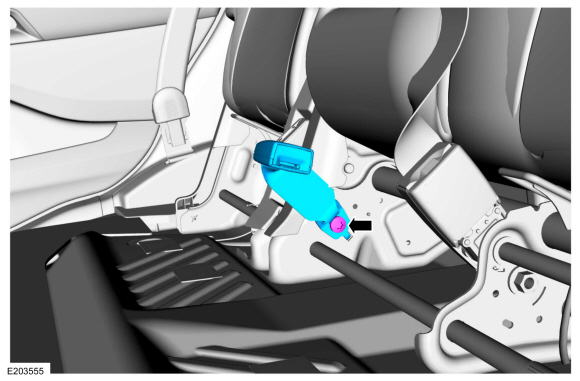

  1. Remove the bolt and the rear center seatbelt buckle.
    Torque: 35 lb.ft (47.5 Nm)

Installation

NOTE: During installation, make sure the seatbelt webbing is not twisted and the seatbelts and buckles are accessible to the occupants.

  1. To install, reverse the removal procedure.
  1. Check the seatbelt system for correct operation.
    Refer to: Seatbelt Systems (501-20 Seatbelt Systems) .
