Lincoln Nautilus: Exterior Lighting / Ballast. Removal and Installation

Lincoln Nautilus 2018-2025 Service Manual / Electrical / Lighting / Exterior Lighting / Ballast. Removal and Installation

Removal

Remove the headlamp assembly.
Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).

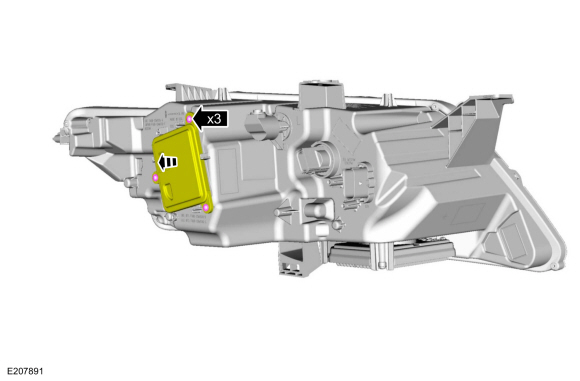

Remove the screws and position the ballast.

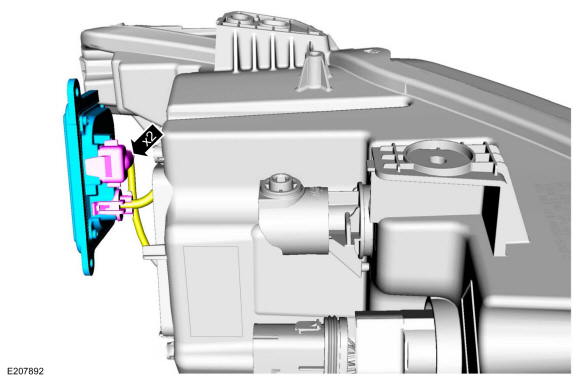

Disconnect the electrical connectors and remove the ballast.

Installation

To install, reverse the removal procedure.

Adaptive Front Lighting Module. Removal and Installation

Removal Remove the headlamp assembly. Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation). Remove the screws and position the adaptive front lighting module to access the connectors...

Front Fog Lamp. Removal and Installation

Removal Remove the front bumper cover. Refer to: Front Bumper Cover (501-19) . Remove the front foglamp. Disconnect the electrical connector...
