Lincoln Nautilus: Front End Body Panels / Engine Undershield - 2.7L EcoBoost™. Removal and Installation
Lincoln Nautilus 2018-2025 Service Manual / Body and Paint / Body and Paint / Front End Body Panels / Engine Undershield - 2.7L EcoBoost™. Removal and Installation
-

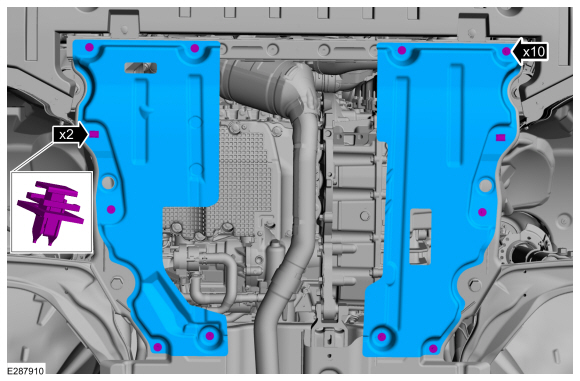

Remove the bolts, grommets and the engine undershield.
Torque: 27 lb.in (3 Nm)
.jpg) |
