Lincoln Nautilus: Front End Body Panels / Fender Splash Shield. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
NOTE: LH side shown, RH side similar.
-
Remove the wheel and tire.
Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
-
Remove the screws.
Torque: 13 lb.in (1.5 Nm)
 |
-
Remove the front fender moulding.
Refer to: Front Fender Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
-

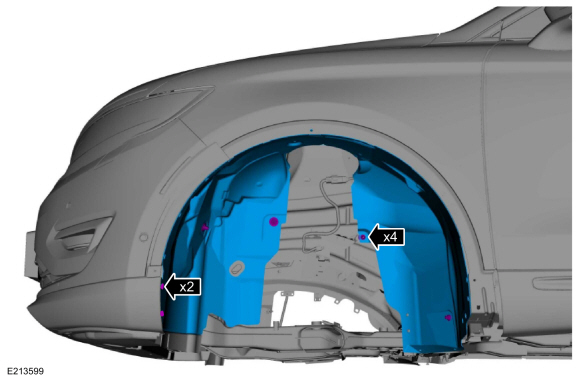

Remove the pin-type retainers.
 |
-
Remove the retainers and the fender splash shield.
.jpg) |
Installation
-
To install, reverse the removal procedure.
