System Operation

System Diagram - Power Windows

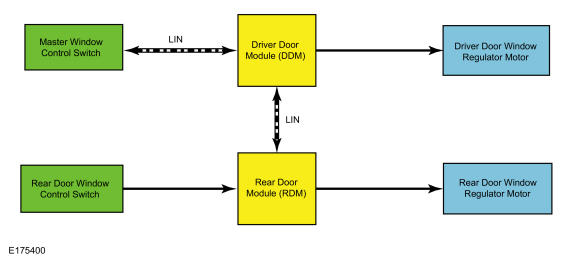

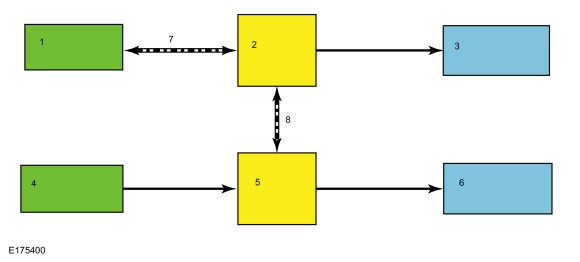

Driver Side Windows


Item Description
1 Master Window Control Switch
2 Driver Door Module (DDM)
3 Driver Door Window Regulator Motor
4 Rear Door Window Control Switch
5 Rear Door Module (RDM)
6 Rear Door Window Regulator Motor
7 LIN
8 LIN

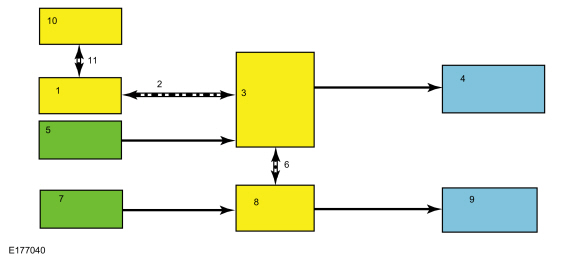

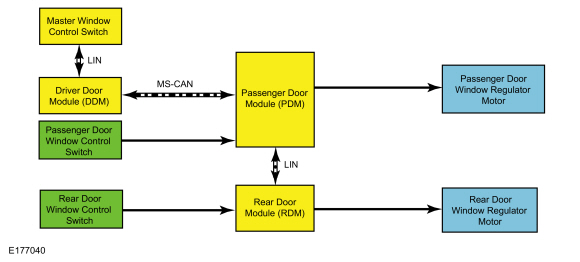

Passenger Side Windows


Item Description
1 Driver Door Module (DDM)
2 MS-CAN
3 Passenger Door Module (PDM)
4 Passenger Door Window Regulator Motor
5 Passenger Door Window Control Switch
6 LIN
7 Rear Door Window Control Switch
8 Rear Door Module (RDM)
9 Rear Door Window Regulator Motor
10 Master Window Control Switch
11 LIN

Network Message Chart - Power Windows

  Passenger Door Module (PDM) Network Input Messages


Broadcast Message Originating Module Message Purpose
Passenger window command   DDM When activating the front or rear passenger windows from the master window control switch, the passenger window command is sent from the DDM to the PDM .
Rear window disable command   DDM When the lock-out switch (located in the master window control switch) is in the LOCK position, the DDM sends this command to the PDM to disable the passenger rear door window regulator motor from operating from the rear door window control switch.

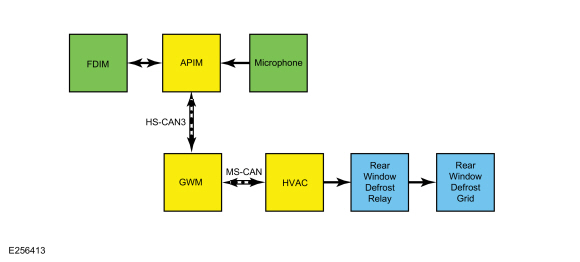

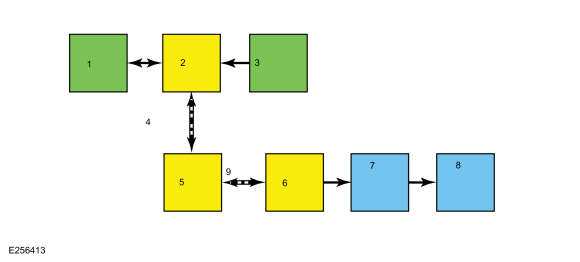

System Diagram - Rear Window Defrost


Item Description
1 FDIM
2 APIM
3 Microphone
4 HS-CAN3
5 GWM
6 HVAC
7 Rear Window Defrost Relay
8 Rear Window Defrost Grid
9 MS-CAN

Network Message Chart - Rear Window Defrost

  HVAC Module Network Input Messages


Broadcast Message Originating Module Message Purpose
Climate control requests APIM (if equipped with touchscreen) The climate control requests message contains the rear window defrost request information. When the rear window defrost function is requested using voice command or the button is selected on the touchscreen, this input activates the rear window defrost system.

Front Door Window Operation

NOTE: If the vehicle battery is disconnected while the window is moving, the one-touch up and one-touch down feature (and obstacle detection) is disabled prior to initialization.


Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).

The power windows operate when the ignition is on or the accessory delay feature is active. The accessory delay feature allows the windows to function for several minutes after you switch off the ignition or until a front door is opened. Both front windows are equipped with obstacle detection and one-touch up and one-touch down functionality. If an obstacle has been detected as the window glass is moving upward, the window motor automatically reverses direction and moves the glass downward.

Driver Door Window Operation

The master window control switch communicates to the DDM through a LIN . When commanded by the master window control switch, the DDM supplies power and ground to operate the driver door window regulator motor in the desired direction. The DDM monitors the window glass position through feedback from 2 Hall-effect sensors (integral to the driver door window regulator motor). If there is an issue with the Hall-effect sensor circuit(s), the DDM only moves the window in 500 ms intervals (the master window control switch must be released and activated again to move the window).

Passenger Door Window Operation

The master window control switch communicates to the DDM through a LIN . The DDM communicates to the PDM through the MS-CAN . The passenger door window control switch is wired directly to the PDM .

When commanded by the master window control switch or the passenger door window control switch, the PDM supplies power and ground to operate the passenger door window regulator motor in the desired direction. The PDM monitors window glass position through feedback from 2 Hall-effect sensors (integral to the passenger door window regulator motor). If there is an issue with the Hall-effect sensor circuit(s), the PDM only moves the window in 500 ms intervals (the passenger or master window control switch must be released and activated again to move the window).

Rear Door Window Operation

NOTE: If the vehicle battery is disconnected while the window is moving, the one-touch up and one-touch down feature (and obstacle detection) is disabled prior to initialization.


Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).

The power windows operate when the ignition is on or the accessory delay feature is active. The accessory delay feature allows the windows to function for several minutes after you switch off the ignition or until a front door is opened. Both rear door windows are equipped with obstacle detection and one-touch up and one-touch down functionality. If an obstacle is detected in the window opening as the window glass is moving upward, the window motor automatically reverses direction and moves the glass downward.

Driver Side Rear Door Window Operation

The master window control switch communicates to the DDM through a LIN . The DDM communicates to the RDM through a LIN . The rear door window control switch is wired directly to the RDM .

When commanded by the master window control switch or the rear door window control switch, the RDM supplies power and ground to operate the rear door window regulator motor in the desired direction. The RDM monitors window glass position through feedback from 2 Hall-effect sensors (integral to the rear door window regulator motor). If there is an issue with the Hall-effect sensor circuit(s), the RDM only moves the window in 500 ms intervals (the driver or rear door window control switch must be released and activated again to move the window).

Passenger Side Rear Door Window Operation

The master window control switch communicates to the DDM through a LIN . The DDM communicates to the PDM through the MS-CAN . The PDM communicates to the RDM through a LIN . The rear door window control switch is wired directly to the RDM .

When commanded by the master window control switch or the rear door window control switch, the RDM supplies power and ground to operate the rear door window regulator motor in the desired direction. The RDM monitors window glass position through feedback from 2 Hall-effect sensors (integral to the rear door window regulator motor). If there is an issue with the Hall-effect sensor circuit(s), the RDM only moves the window in 500 ms intervals (the driver or rear door window control switch must be released and activated again to move the window).

Passenger Windows Lock-Out

When the lock-out switch (part of the master window control switch) is in the LOCK position, the rear door passenger power windows can only be operated from the master window control switch.

Global Open/Close (if equipped)

The RKE can be used to operate the windows when the ignition is off and the accessory delay feature is not active. Within a short time after unlocking the vehicle doors with the RKE transmitter, press and hold the unlock button on the RKE transmitter until the windows begin moving. The windows automatically open. To close the windows, press and hold the lock button on the RKE transmitter until the windows begin moving. The windows automatically close. Pressing the lock or unlock button while the windows are moving (in either direction) stops window movement.

Rear Window Defrost

When the rear window defrost button on the touchscreen or the max defrost button is pressed, the HVAC module activates the rear window defrost relay (integral to the BJB ).

The HVAC module deactivates the rear window defrost relay when one of these conditions is met:

  • The rear window defrost button is pressed when the feature is active.
  • Ignition state changes from ON to OFF.
  • A predetermined timer completes.
  • Battery voltage drops below a specified threshold (load management strategy).

Component Description

Master Window Control Switch

The master window control switch receives voltage whenever the delayed accessory relay is active. The master window control switch is grounded through the DDM . The master window control switch communicates to the DDM through a LIN .

Passenger Front Door Window Control Switch

The passenger door window control switch contains momentary contacts (one for each window switch direction). The PDM provides a return (ground) for the passenger door window control switch. When the control switch is activated, a ground signal is supplied to the PDM to operate the passenger door window regulator motor in the desired direction.

Rear Door Window Control Switch

Each of the rear door window control switches contains momentary contacts (one for each window switch direction). The driver or passenger side RDM provides a return (ground) for the rear door window control switch. When the rear door window control switch is activated, a ground signal is supplied to the driver or passenger side RDM to operate the rear door window regulator motor in the desired direction.

Door Window Regulator Motor

The door window regulator motor(s) are bi-directional. Window direction is determined by the polarity of the voltage being supplied to the motor from the associated door module. The door window regulator motor contains 2 Hall-effect sensors. The Hall-effect sensor power supply and return circuits are provided by the associated door module.

HVAC Module

The HVAC controls the rear window defrost relay. PMI is required if installing a new module.

Front Display Interface Module (FDIM)

The FDIM contains a redundant rear window defrost button on the touchscreen display. The FDIM plugs directly into the APIM , and does not communicate directly on any network.

Driver Door Module (DDM)

The DDM receives power window commands from the master window control switch through a LIN . The DDM supplies voltage and ground to operate the driver door window regulator motor.

The DDM also communicates master window control switch requests to the associated RDM through a LIN and to the PDM through the MS-CAN . The DDM requires PMI when it is replaced.

Passenger Door Module (PDM)

The PDM receives power window commands from the passenger door window control switch or from the DDM through the MS-CAN . The PDM supplies voltage and ground to operate the passenger door window regulator motor.

The PDM also communicates master window control switch requests to the passenger RDM through a LIN . The PDM requires PMI when it is replaced.

Rear Door Module (RDM)

The driver side RDM receives power window commands from the rear door window control switch or from the DDM through a LIN . The RDM supplies voltage and ground to operate the rear door window regulator motor.

The passenger side RDM receives power window commands from the rear door window control switch or from the PDM through a LIN . The RDM supplies voltage and ground to operate the rear door window regulator motor. The RDM does not require PMI when it is replaced.
