Lincoln Nautilus: Information and Entertainment System - General Information - Vehicles With: SYNC 4 / Information and Entertainment System - Component Location. Description and Operation
NOTE: The available speaker configurations are shown first. The remaining hidden audio/SYNC system components and various cable routings follow the speaker configurations.
NOTE: Some vehicles may not be equipped with all the optional components shown.

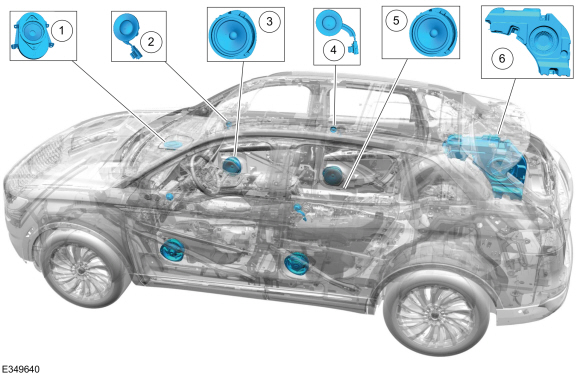

11 Speaker System
| Item | Description |
|---|---|
| 1 | Instrument panel center speaker (counted as 2 speakers) |
| 2 | Left/right front door tweeter speakers |
| 3 | Left/right front door woofer speakers |
| 4 | Left/right rear door tweeter speakers |
| 5 | Left/right rear door woofer speakers |
| 6 | Subwoofer amplifier and speaker |

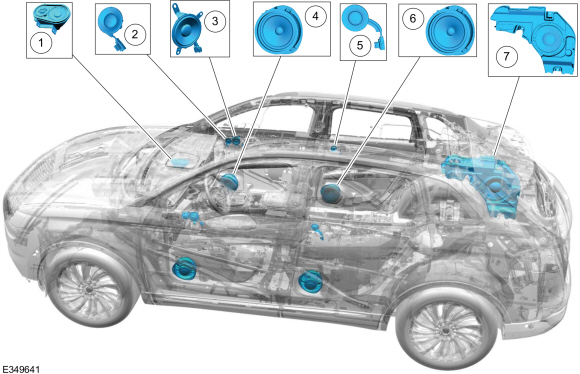

13 Speaker System
| Item | Description |
|---|---|
| 1 | Instrument panel center speaker (counts as 2 speakers) |
| 2 | Left/right front door tweeter speakers |
| 3 | Left/right front door midrange speakers |
| 4 | Left/right front door woofer speakers |
| 5 | Left/right rear door tweeter speakers |
| 6 | Left/right rear door woofer speakers |
| 7 | Subwoofer speaker |

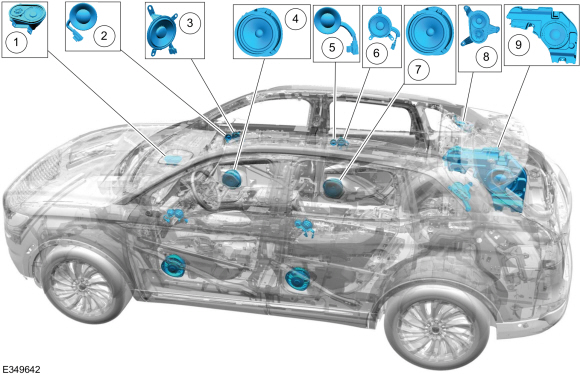

19 Speaker System
| Item | Description |
|---|---|
| 1 | Instrument panel center speaker (counts as 2 speakers) |
| 2 | Left/right front door tweeter speakers |
| 3 | Left/right front door midrange speakers |
| 4 | Left/right front door woofer speakers |
| 5 | Left/right rear door tweeter speakers |
| 6 | Left/right rear door midrange speakers |
| 7 | Left/right rear door woofer speakers |
| 8 | Left/right D-pillar speakers (counts as 2 speakers each) |
| 9 | Subwoofer speaker |

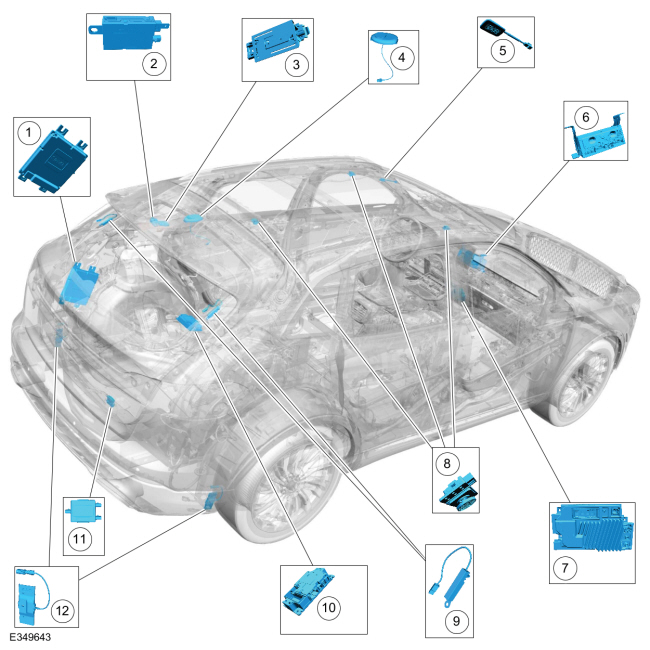

Audio/SYNC System Hidden Components
| Item | Description |
|---|---|
| 1 | DSP |
| 2 | AM / FM 1 antenna amplifier |
| 3 | Secondary cellular antenna |
| 4 | GPS /satellite radio antenna |
| 5 | Voice microphone |
| 6 | ACM |
| 7 | APIM |
| 8 | ANC microphones |
| 9 | Left/right noise filters |
| 10 | TCU |
| 11 | Cellular antenna combiner/splitter |
| 12 | Left/right primary cellular antennas |

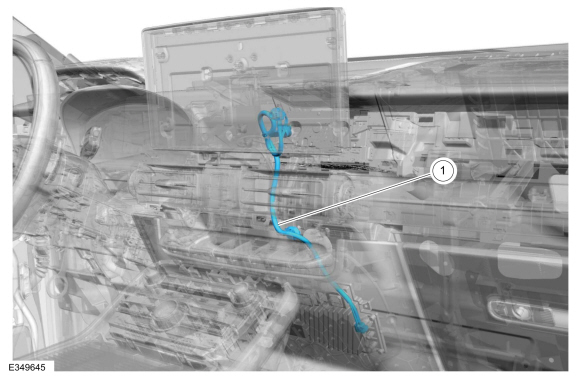

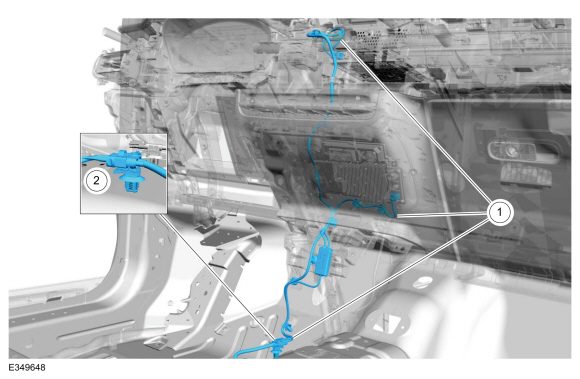

USB Cable Routing
| Item | Description |
|---|---|
| 1 | Front USB cable |
| 2 | Rear USB cable |
| 3 | USB cable in-line connection |
LVDS Cable Routing
| Item | Description |
|---|---|
| 1 | LVDS cable |

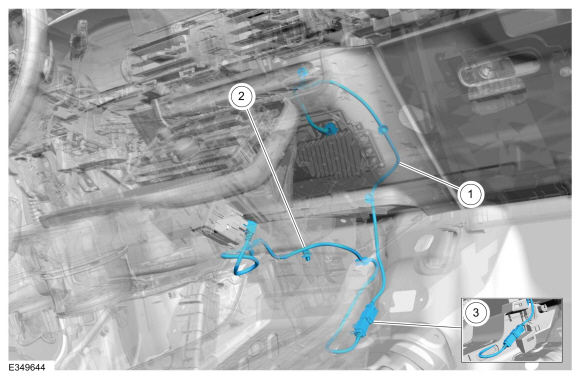

Front Automobile Audio Bus (A2B) Cable Routing
| Item | Description |
|---|---|
| 1 | Front Automobile Audio Bus (A2B) cable |
| 2 | Automobile Audio Bus (A2B) cable in-line connection |

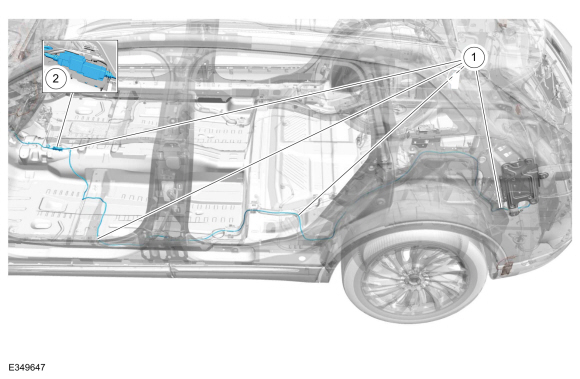

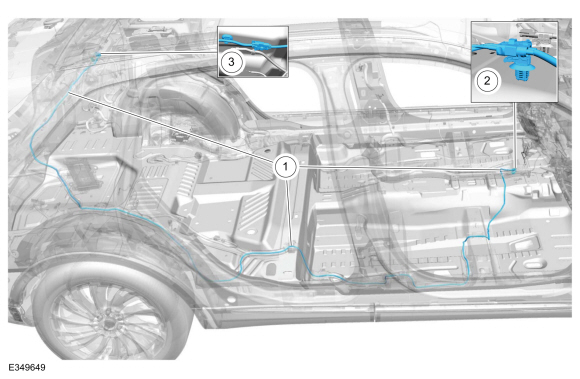

Rear Automobile Audio Bus (A2B) Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | Rear Automobile Audio Bus (A2B) cable |
| 2 | Automobile Audio Bus (A2B) cable in-line connection |
Front AM / FM 1/ GPS /Satellite Antenna Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | Front AM / FM 1/ GPS /satellite radio antenna cable |
| 2 | AM / FM 1/ GPS /satellite radio antenna cable front in-line connection |

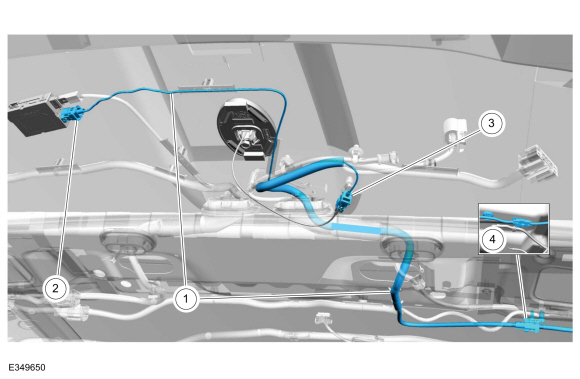

Center AM / FM 1/ GPS /Satellite Antenna Cable Routing
| Item | Description |
|---|---|
| 1 | Center AM / FM 1/ GPS /satellite radio antenna cable |
| 2 | AM / FM 1/ GPS /satellite radio antenna cable front in-line connection |
| 3 | AM / FM 1/ GPS /satellite radio antenna cable rear in-line connection |

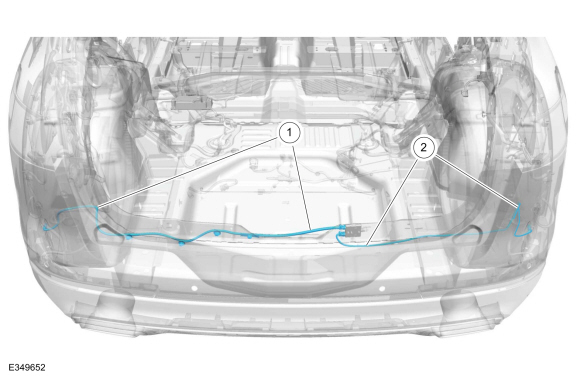

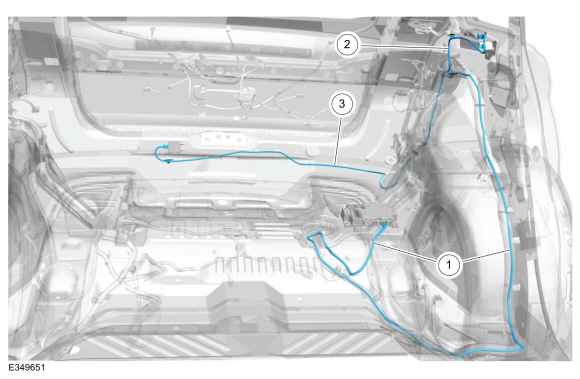

Rear AM / FM 1/ GPS /Satellite Antenna Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | Rear AM / FM 1/ GPS /satellite radio antenna cable |
| 2 | Connection to AM / FM 1 antenna amplifier |
| 3 | Connection to GPS /satellite radio antenna |
| 4 | AM / FM 1/ GPS /satellite radio antenna cable rear in-line connection |
Front Primary/Secondary Cellular Antenna Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | Front primary/secondary cellular antenna cable |
| 2 | Secondary cellular antenna cable |
| 3 | Front primary cellular antenna cable |
Left/Right Primary Cellular Antenna Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | Left cellular antenna cable |
| 2 | Right cellular antenna cable |
Information and Entertainment System - System Operation and Component Description. Description and Operation
System Operation
Audio System Overview
NOTE:
Refer to the Owner Literature for additional details of the audio system.
AM / FM Radio
The ACM
can be operated when the ignition is on or off...
