Lincoln Nautilus: Rear Seats / Power Fold Seat Control Switch. Removal and Installation

Lincoln Nautilus 2018-2025 Service Manual / Body and Paint / Body and Paint / Rear Seats / Power Fold Seat Control Switch. Removal and Installation

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

On both sides.

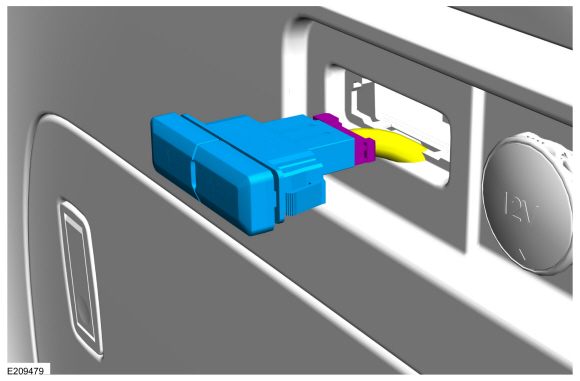

Using an interior trim tool, release the power fold seat control switch locking tabs.
Use the General Equipment: Interior Trim Remover

Disconnect the electrical connector and remove the power fold seat control switch.

Installation

To install, reverse the removal procedure.
