Lincoln Nautilus: Tire Pressure Monitoring System (TPMS) / Tire Pressure Monitoring System (TPMS) - Component Location. Description and Operation
Lincoln Nautilus 2018-2024 Service Manual / Chassis / Suspension / Tire Pressure Monitoring System (TPMS) / Tire Pressure Monitoring System (TPMS) - Component Location. Description and Operation

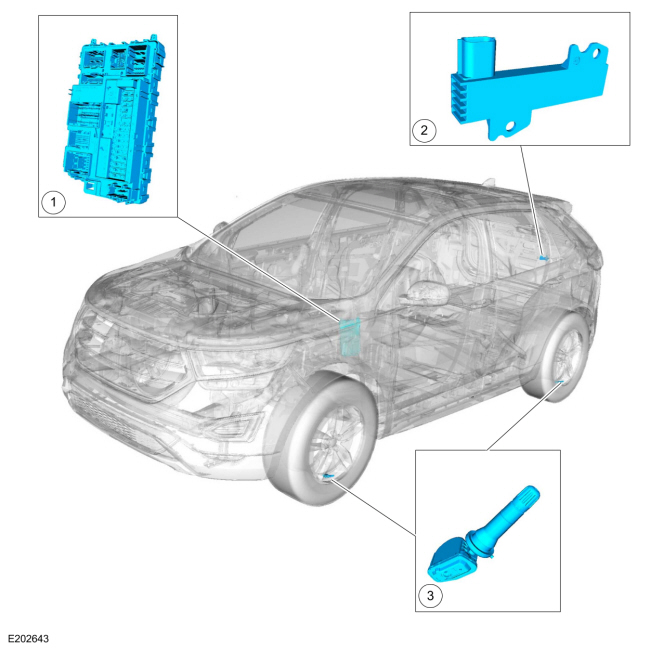

| Item | Description |
|---|---|
| 1 | BCM |
| 2 | RTM |
| 3 | TPMS sensor assembly (4 required) |
Tire Pressure Monitoring System (TPMS) - Overview. Description and Operation
Overview
The BCM uses tire pressure sensors to monitor tire pressure. The
sensors use radio signals to transmit the tire pressure to the RTM . The
RTM sends the information to the BCM over the Medium Speed Controller
Area Network (MS-CAN) and K-Line...
