Lincoln Nautilus: Wipers and Washers / Windshield Washer Fluid Level Sensor. Removal and Installation

Lincoln Nautilus 2018-2024 Service Manual / Body and Paint / Body and Paint / Wipers and Washers / Windshield Washer Fluid Level Sensor. Removal and Installation

Special Tool(s) / General Equipment

Fluid Suction Gun
Fluid Container

Materials

Name Specification
Motorcraft® Premium Windshield Wash Concentrate with Bitterant
ZC-32-B2
WSS-M14P19-A


Removal

NOTE: Hood removed in this procedure for clarity.

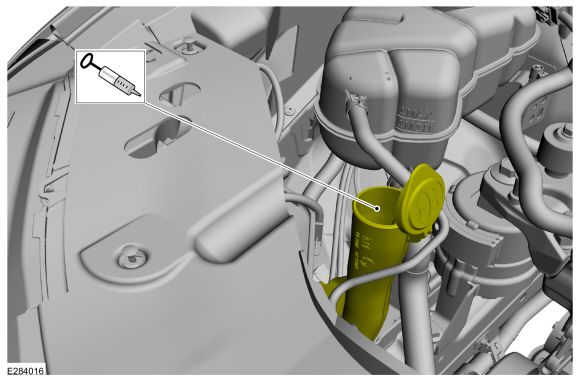

  1. Siphon the windshield washer fluid out.
    Use the General Equipment: Fluid Suction Gun
    Use the General Equipment: Fluid Container
  1. Remove the RH fender splash shield.
    Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

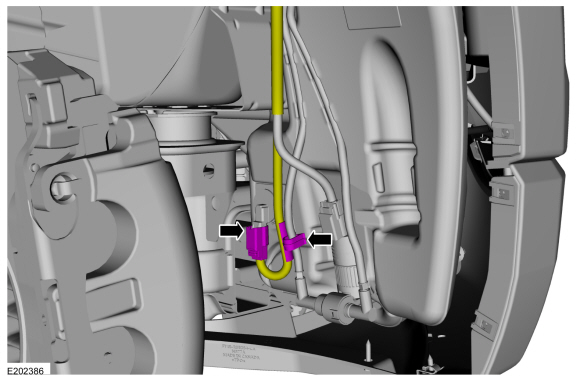

  1. Detach the wire harness retainer and disconnect the level sensor electrical connector.

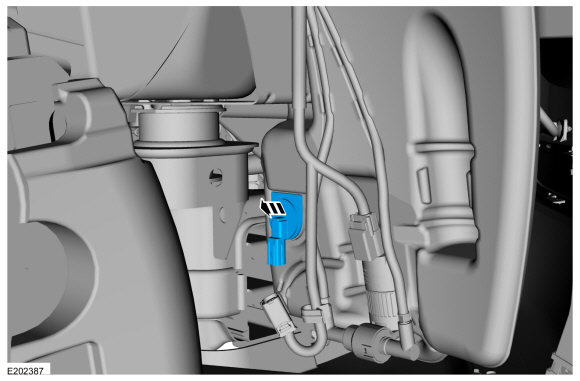

  1. NOTE: Be prepared to collect escaping fluid.

    Remove the fluid level sensor.
    Use the General Equipment: Fluid Container

Installation

NOTICE: Do not operate the washer pump prior to filling the windshield washer reservoir. Failure to follow this instruction may result in premature pump failure.

  1. To install, reverse the removal procedure.
    Material: Motorcraft® Premium Windshield Wash Concentrate with Bitterant / ZC-32-B2 (WSS-M14P19-A)
