Lincoln Nautilus: Wipers and Washers / Windshield Wiper Pivot Arm. Removal and Installation

Lincoln Nautilus 2018-2025 Service Manual / Body and Paint / Body and Paint / Wipers and Washers / Windshield Wiper Pivot Arm. Removal and Installation

Special Tool(s) / General Equipment

Two Leg Puller

Removal

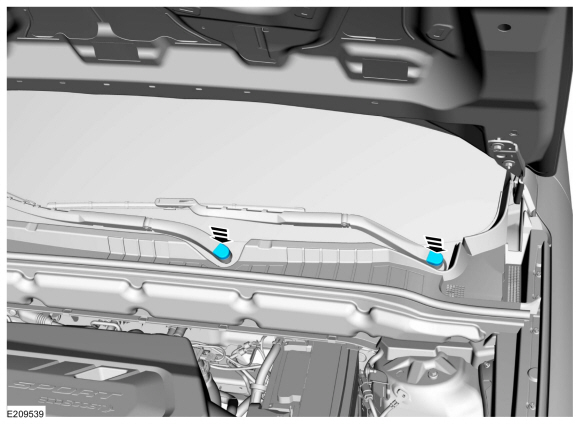

  1. Remove windshield wiper pivot arm nut covers.
  1. Remove windshield wiper pivot arm nuts.
  1. NOTE: LH shown, RH similar.

    Remove the wiper pivot arm(s).
    Use the General Equipment: Two Leg Puller

Installation


  1. Verify the windshield wiper motor is in the PARK position.
    1. Turn the ignition ON.
    1. Pull the switch down to cycle the windshield wiper motor.
    1. Turn the ignition OFF.
  1. NOTE: The hood is removed in this step for clarity.


    Install the wiper pivot arm(s).
    1. Align the wiper blade(s) within the marks on the windshield.
    1. Install the wiper pivot arm nut(s).
      Torque: 22 lb.ft (30 Nm)
  1. Install the windshield wiper pivot arm nut covers.
