Lincoln Nautilus: Front Seats / Front Head Restraint Guide Sleeve. Removal and Installation

Lincoln Nautilus 2018-2024 Service Manual / Body and Paint / Body and Paint / Front Seats / Front Head Restraint Guide Sleeve. Removal and Installation

Special Tool(s) / General Equipment

Flat Headed Screw Driver

Removal

NOTE: Typical head restraint guide sleeve shown, others similar.


  1. Remove the front head restraint.
    1. Depress the locking tabs.
    1. Remove the front head restraint.
  1. NOTE: Follow the unique instructions or graphics for this step in installation.


    Remove the head restraint guide sleeve.

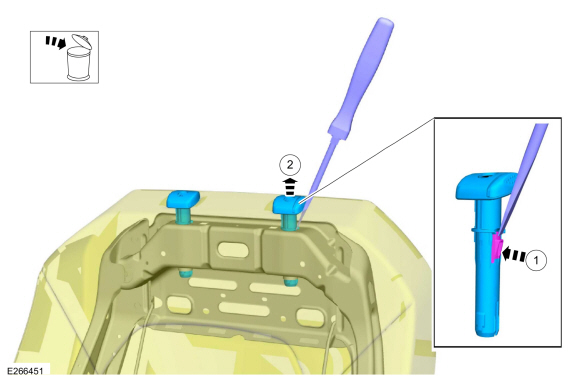

    1. Release the tab.
      Use the General Equipment: Flat Headed Screw Driver
    1. Remove the front head restraint guide sleeve.

Installation

  1. NOTICE: Always install new head restraint guide sleeves. Difficult adjustment of the head restraint may occur. Failure to follow these instructions may result in component failure.

    NOTICE: The head restraint guide sleeves are not interchangeable. Failure to install the correct head restraint guide sleeves at the correct position may result in component failure.

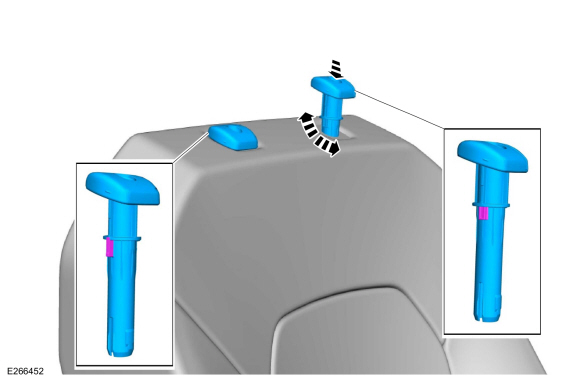

    Allow the head restraint guide sleeve to slide freely through the backrest foam and backrest trim cover. Using hand pressure, twist the head restraint guide sleeve while pushing it into the backrest frame until the tab is locked into placed.

  1. Install the front head restraint.
    1. Depress the locking tabs.
    1. Install the front head restraint.
