Lincoln Nautilus: Rear Seats / Heated Rear Seat Module. Removal and Installation
Removal
-
Remove the rear seat cushion.
Refer to: Rear Seat Cushion (501-10B Rear Seats, Removal and Installation).
-
Release the seat cushion cover J-clips.
-

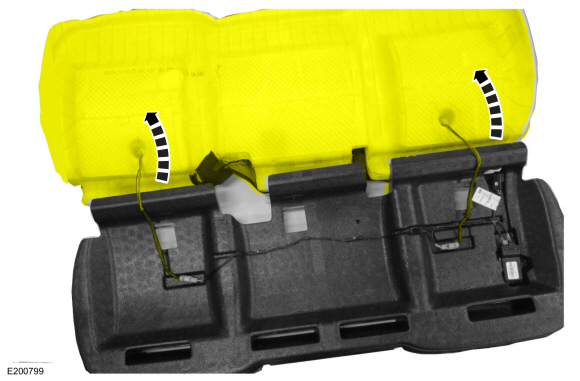

Raise the rear seat cushion cover and foam.
-

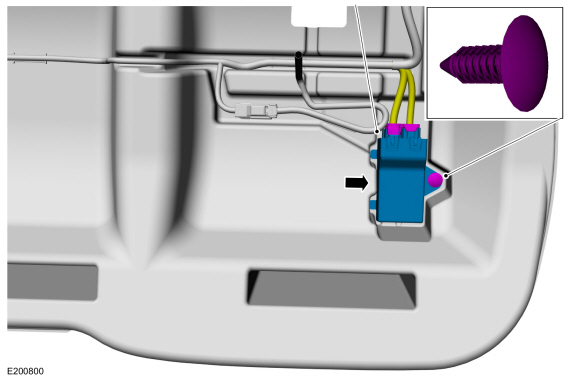

Disconnect the electrical connectors. Remove the pin-type retainer and the heated rear seat module.
Installation
-
To install, reverse the removal procedure.
