Lincoln Nautilus: Body Closures / Liftgate Anti-Pinch Switch. Removal and Installation
Removal
NOTE: LH side shown, RH side similar.
-
Remove the liftgate trim panel.
Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

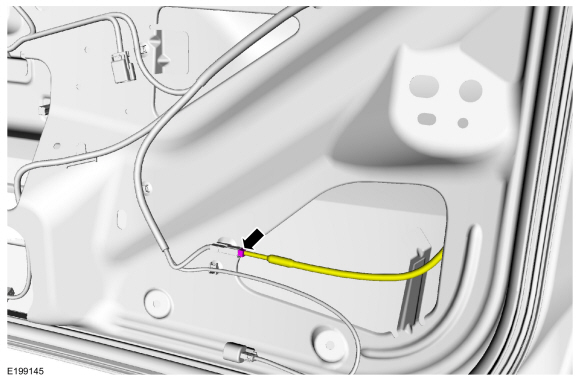

Disconnect the liftgate anti-pinch switch electrical connector.
 |
-

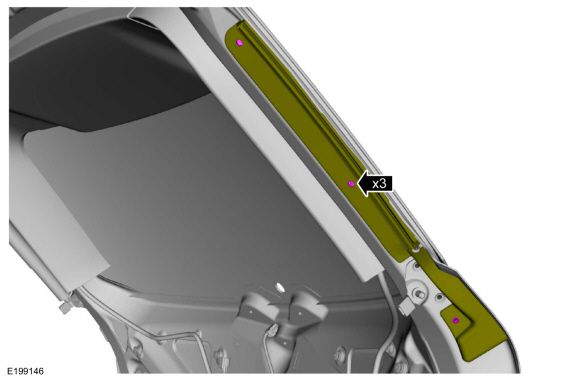

Remove the retainers.
.jpg) |
-

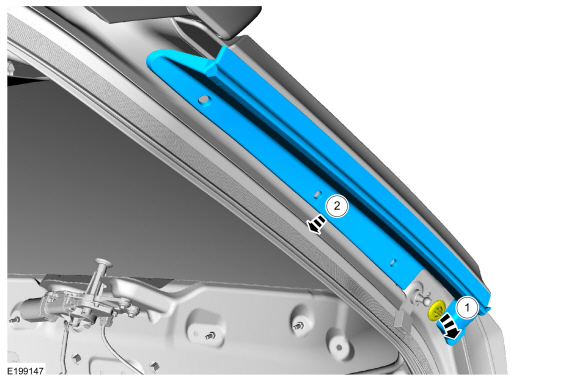

Remove the liftgate anti-pinch switch.
-
Remove the rubber grommet and route the electrical connector out of the liftgate.
-
Remove the liftgate anti-pinch switch.
-
Remove the rubber grommet and route the electrical connector out of the liftgate.
 |
Installation
- To install, reverse the removal procedure.
