Lincoln Nautilus: Battery, Mounting and Cables / Battery Monitoring Sensor. Removal and Installation
Removal
NOTE:
When the battery is disconnected and connected, some
abnormal drive symptoms may occur while the vehicle relearns its
adaptive strategy. The vehicle may need to be driven to allow the PCM to relearn the adaptive strategy values.
NOTE:
The cowl panel is removed for clarity only.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTICE:
Make sure the positive battery terminal cover is in
position while removing the negative battery cable clamp to prevent
damage from a short to the positive terminal.
NOTICE:
Do not remove or install the M8 nut on the cable
eyelet bolt while the battery monitor sensor is attached to the battery
post as this causes damage to the sensor, connector, and possibly the
battery post and case.
NOTICE:
Be careful not to damage the sensor when removing
the terminal from the battery post. Do not pry on the terminals or
component damage may occur.

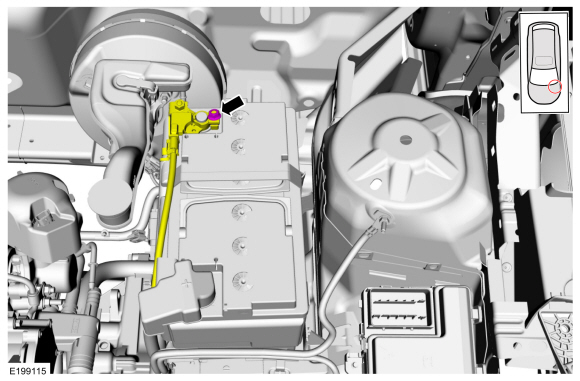

Loosen, but do not remove the nut. Position the negative battery cable.
Torque:
48 lb.in (5.4 Nm)
-
Disconnect the electrical connector, remove the nut and the battery monitoring sensor.
Torque:
177 lb.in (20 Nm)
Installation
-
To install, reverse the removal procedure.
